Wheel/Stud Bolt Pattern Measuring Tool/PCD Ruler – 4 5 6 8 Holes Lug Bolt Pattern Gauge

Price: $9.99
(as of May 13, 2026 07:02:46 UTC – Details)

Product description

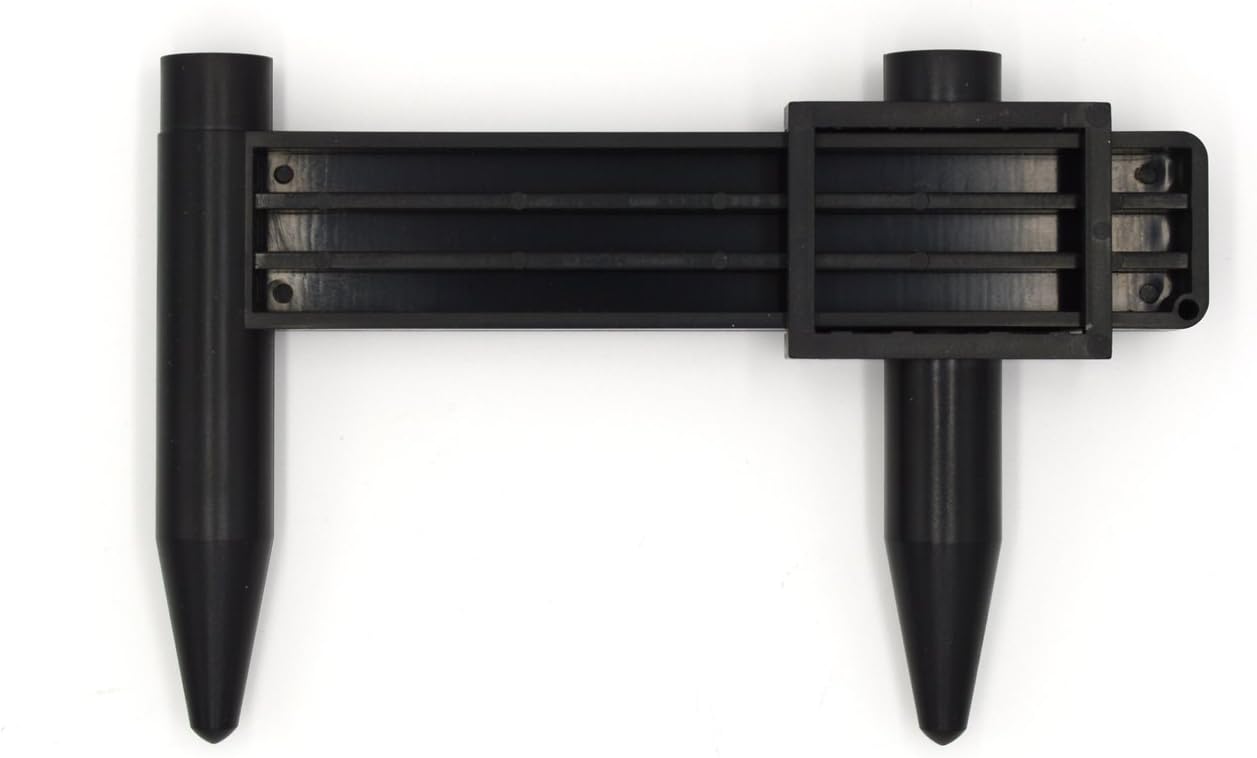

PCD Gauge Bolt Pattern Sliding Measuring Tool

GoldenSunny PCD gauge is the fastest and easiest way of working out what your wheel or hub’s PCD / Stud Pattern is. This Bolt Pattern Gauge is used to work out which wheels will fit on your car. A must-have tool for every workshop/tire store/ enthusiast.

A ruler cannot be simply used or measuring tape to work this out, as the measurements relate to the diameter of the pitch circle, rather than the distance between stud holes.

Simple to use and adjust

Pick any hole and put one point in that hole then use the slide point and put it in the closest hole on either side of the hole you had previously chose.

Can be used to measure a wheel or turned over to measure studs on a vehicle.

Easy to read

Just read the closet number to an arrow.

Works with Most 4, 5, 6 and 8 lug Wheels, Provides Inch and Metric Dimensions

4-lug 4X100, 4X108, 4X110, 4X120, 4X130, 4X140, 4X4.5″ 5-Lug 5×100, 5×105, 5×108, 5×110, 5×112, 5×115, 5×120, 5×130, 5×135, 5×150, 5×4.5″, 5×4.75″, 5×5.0″, 5×5.5″, 5×6.5″ 6-Lug 6×135, 6×4.5″, 6×5.0″, 6×5.5″ 8-Lug 8×170, 8×180, 8×200, 8×210, 8×6.5″

Works with Most 4, 5, 6 and 8 lug Wheels, Provides Inch and Metric Dimensions
4-Lug: 4X98, 4X100, 4X108, 4X120, 4X130, 4X140, 4X4.5″
5-Lug: 5×100, 5×108, 5×112, 5×115, 5×130, 5×135, 5×150, 5×4.5″, 5×4.75″, 5×5.0″, 5×5.5″
6-Lug: 6×135, 6×4.5″, 6×5.0″, 6×5.5″
8-Lug: 8×170, 8×6.5″
